200GBASE QSFP56 Active Optical Cable (AOC)

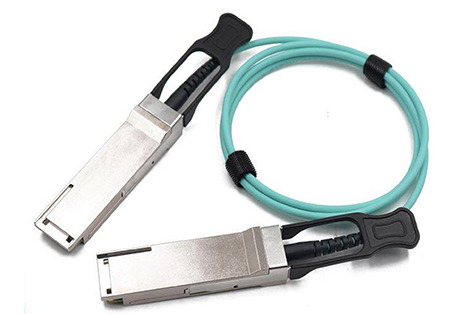

The Hyper Photonix HSQ3-200-1-MF5M 200GBASE QSFP56 AOC cable is designed for 200 Gigabit Ethernet links over 20 meters of multimode fiber. They are compliant with QSFP MSA and IEEE 802.3cd. The optical transceivers are RoHS compliant.

TAG: 200G,Active Optical Cable,AOC

Get a Quote

Download

Features

Typical Application

Specifications

Videos

Features

Support IBTA InfiniBand HDR application
Compliant to QSFP56 Electrical MSA SFF-8665
4x50Gbps PAM4 modulation
Multi-rate up to 200Gbps
3.3V power supply
Power consumption ≤ 4.5W each end
Operating case temperature: 0°C to 70°C
RoHS compliant

Typical Application

200Gbps InfiniBand HDR
Other optical links

Specifications

Data Rate	4x50Gb/s
Supply voltage	3.3V
Power consumption	＜5W
Wavelength	850nm
Transmitter	VCSEL
Receiver	PIN
Case Temperature	0℃ to 70℃ (32 to 158°F)
Reach	1-20m
