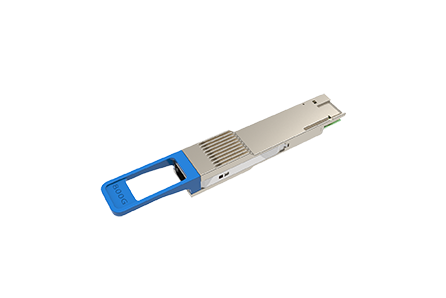

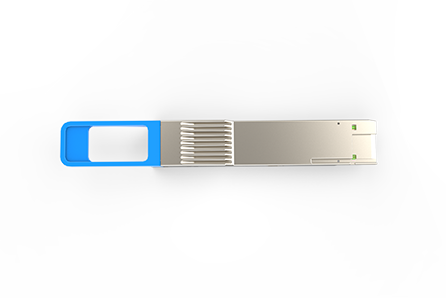

800GBASE-DR8 QSFP-DD PAM4 1310nm 500m DOM MTP/MPO-16 SMF 光收发器模块

芯速联HSD2-800-DR-P8S 收发器专为 500 米单模光纤(SMF)上的 800G 以太网通信应用链路而设计,符合 QSFP-DD800 MSA、800G Pluggable MSA、CMIS 4.0、IEEE 802.3cu 和 802.3ck 标准。光信号在中心波长为 1310nm 的 8 个并行通道上传输。该模块在发射器和接收器上包含 8 个并行通道,每个通道的工作速率为 106.25Gbps。它适用于 800G 以太网、数据中心、突破性 2x400G DR4 或 8x100G DR 应用。光接口为 MTP/MPO-16 APC 连接器。

TAG: 800G, Optical Transceiver, Data Center
Get a Quote
Download
Features
Typical Application
Specifications
Videos

Features

  • QSFP112-DD800 MSA and CMIS 5.1 compliant

  • MPO-16 APC connector

  • 8x106.25Gbps (53.125GBd PAM4) electrical interface

  • 8x106.25Gbps (53.125GBd PAM4) optical interface

  • Up to 500m over SMF

  • Power dissipation ≤ 18W

  • Operating case temperature: 0°C to 70°C

  • IEEE 802.3cu and IEEE 802.3ck compliant

  • Built-in digital diagnostic functions

  • 3.3V power supply voltage

  • RoHS compliant

Typical Application

  • 800G Ethernet

  • Datacenter networks

  • AI/ML Computing

Specifications

Data Rate:800G
Supply voltage3.3V
Power consumption≤ 18W
Wavelength1310nm
Transmitter

Hyper Silicon ™ Photonics

Case Temperature0℃ to 70℃
Reach500m over SMF





Videos

800GBASE-DR8 QSFP-DD Hyper Silicon™ Photonics Pluggable Optical Transceiver
