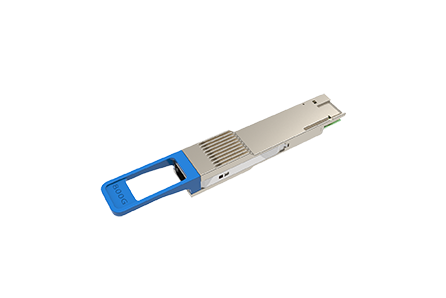

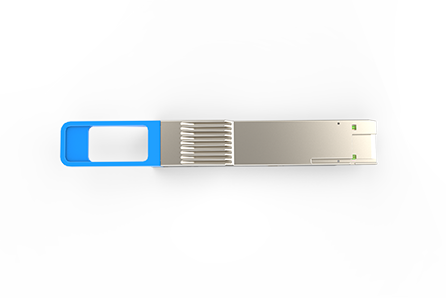

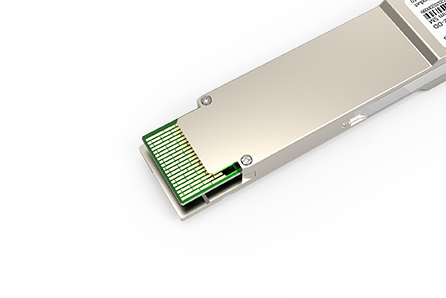

800GBASE-DR8 QSFP-DD Hyper Silicon™ Photonics Pluggable Optical Transceiver

The Hyper Photonix HSD2-800-DR-P8S transceiver is designed for 800G Ethernet communication application links over 500m of single-mode fiber(SMF), and it is compliant with QSFP-DD800 MSA, 800G Pluggable MSA, CMIS 4.0, IEEE 802.3cu, and 802.3ck standards. The optical signal is transmitted over eight parallel channels at a central wavelength of 1310nm. The module contains 8 parallel channels on the transmitter and receiver, each operating at 106.25Gbps. It is suitable for 800G Ethernet, Data Center, Breakout 2x400G DR4 or 8x100G DR Application. The optical interface is MTP/MPO-16 APC connector.

TAG: 800G,Optical Transceiver,Data Center
Get a Quote
Download
Features
Typical Application
Specifications
Videos

Features

  • QSFP112-DD800 MSA and CMIS 5.1 compliant

  • MPO-16 APC connector

  • 8x106.25Gbps (53.125GBd PAM4) electrical interface

  • 8x106.25Gbps (53.125GBd PAM4) optical interface

  • Up to 500m over SMF

  • Power dissipation ≤ 18W

  • Operating case temperature: 0°C to 70°C

  • IEEE 802.3cu and IEEE 802.3ck compliant

  • Built-in digital diagnostic functions

  • 3.3V power supply voltage

  • RoHS compliant

Typical Application

  • 800G Ethernet

  • Data Center Networks

Specifications


Data Rate:800Gbps
Supply voltage3.3V
Power consumption≤18W
Wavelength1310nm
TransmitterHyper Silicon™ Photonics
Case Temperature0℃ to 70℃
Reach500m over SMF


Videos

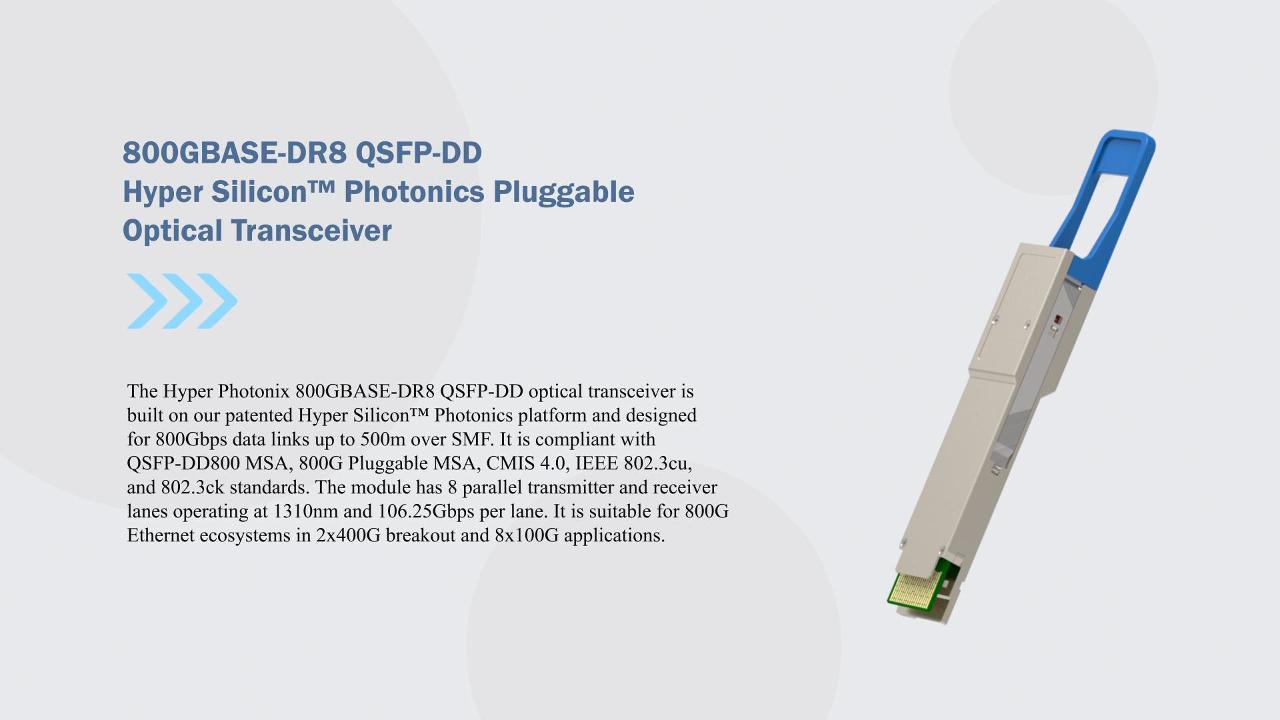

800GBASE-DR8 QSFP-DD Hyper Silicon™ Photonics Pluggable Optical Transceiver
