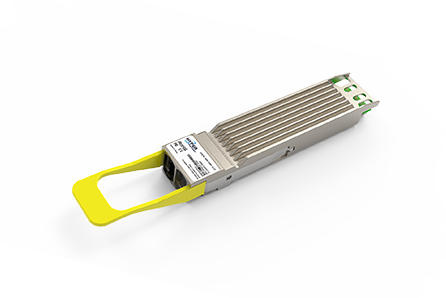

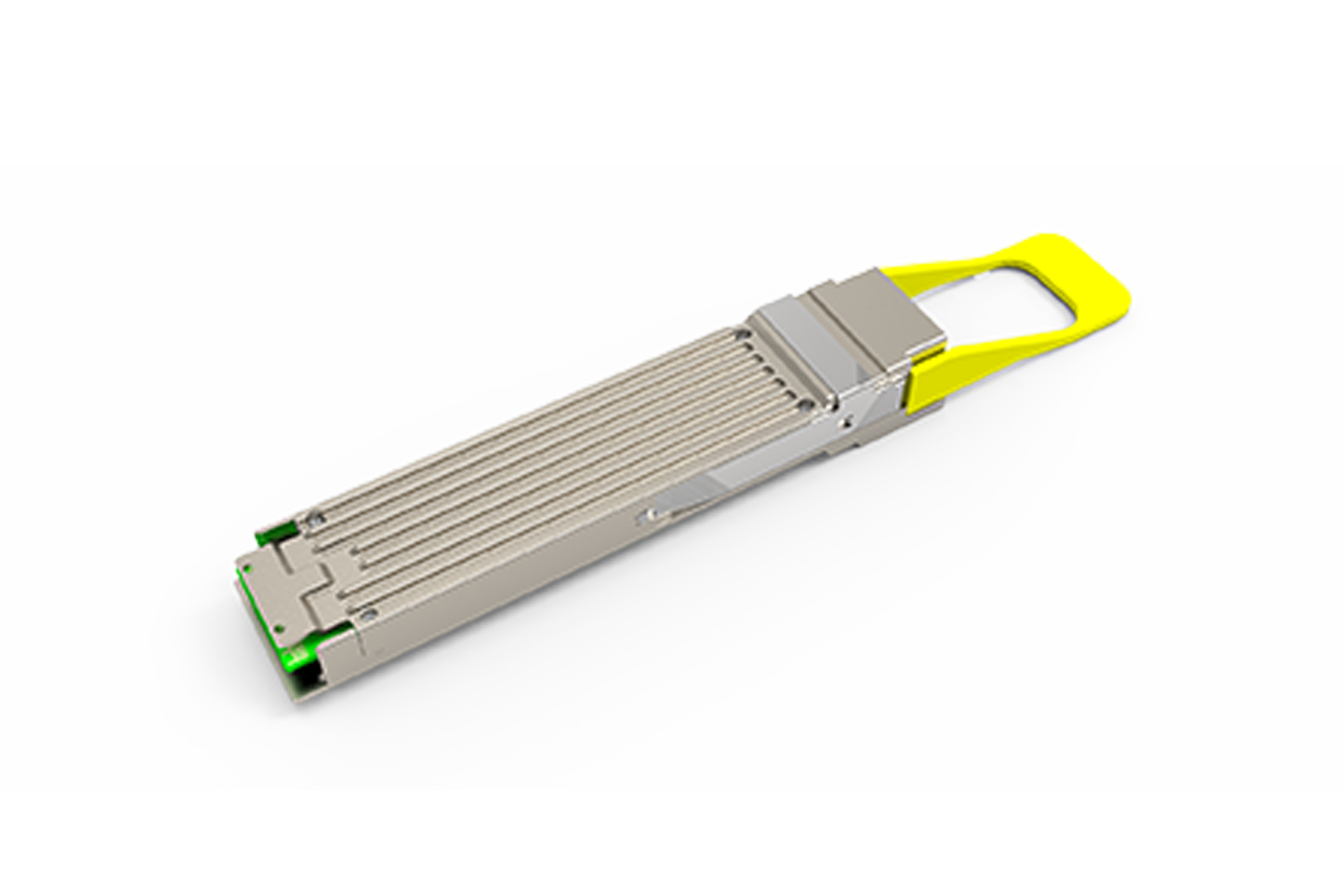

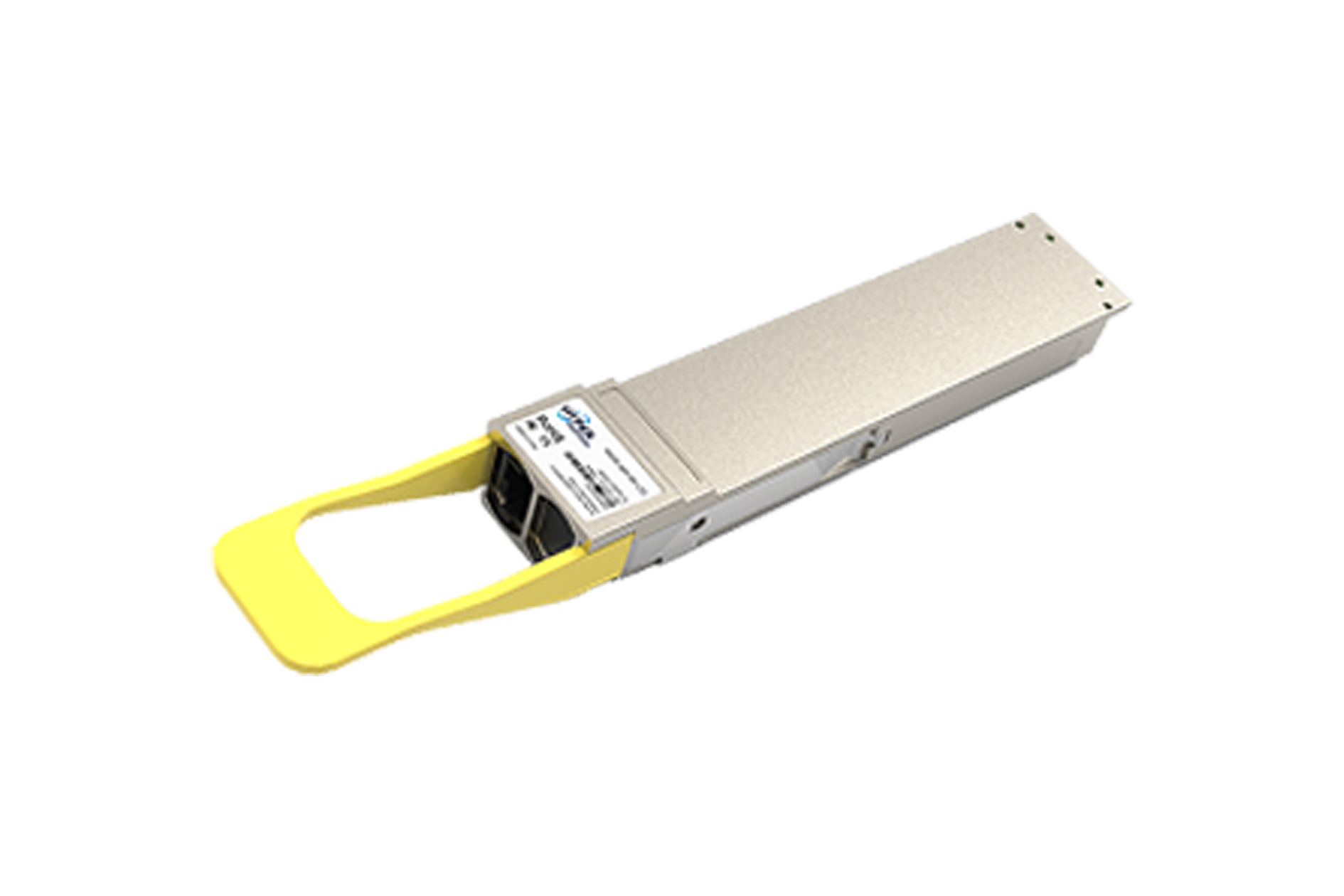

400G OSFP112 DR4+ FLT Pluggable Optical Transceiver

The Hyper Photonix HSO8-400-DRP-C2S transceiver is designed for 400G Ethernet and InfiniBand communication application links over 2km of single-mode fiber(SMF), and it is compliant with OSFP MSA, CMIS 5.1, IEEE802.3ck and IEEE 802.3df standards. The optical signal is transmitted over four parallel channels at a central wavelength of 1310nm. The module contains 4 parallel channels on the transmitter and receiver, each operating at 106.25Gbps. The optical interface is MTP/MPO-12 APC connector.

TAG: 400G, Optical Transceiver, Data Center
Get a Quote
Download
Features
Typical Application
Specifications
Videos

Features

  • OSFP MSA 5.0 and CMIS 5.1 compliant

  • Single MPO-12/APC optical connector

  • 4x106.25Gbps (53.125GBd PAM4) electrical interface

  • 4x106.25Gbps (53.125GBd PAM4) optical interface

  • Up to 2km over SMF

  • Power dissipation ≤ 9W

  • Operating case temperature: 0°C to 70°C

  • IEEE 802.3ck and IEEE 802.3df compliant

  • Built-in digital diagnostic functions

  • 3.3V power supply voltage

  • RoHS compliant

Typical Application

  • 400GBASE-DR4 Ethernet

  • Data center networks

  • InfiniBand NDR

Specifications


Data Rate400Gb/s

Supply voltage

3.3V
Power consumption≤ 9W
Wavelength1310nm
ConnectorMPO-12/APC
TransmitterHyper Silicon ™ Photonics
Case Temperature0℃ to 70℃
Reach2km
