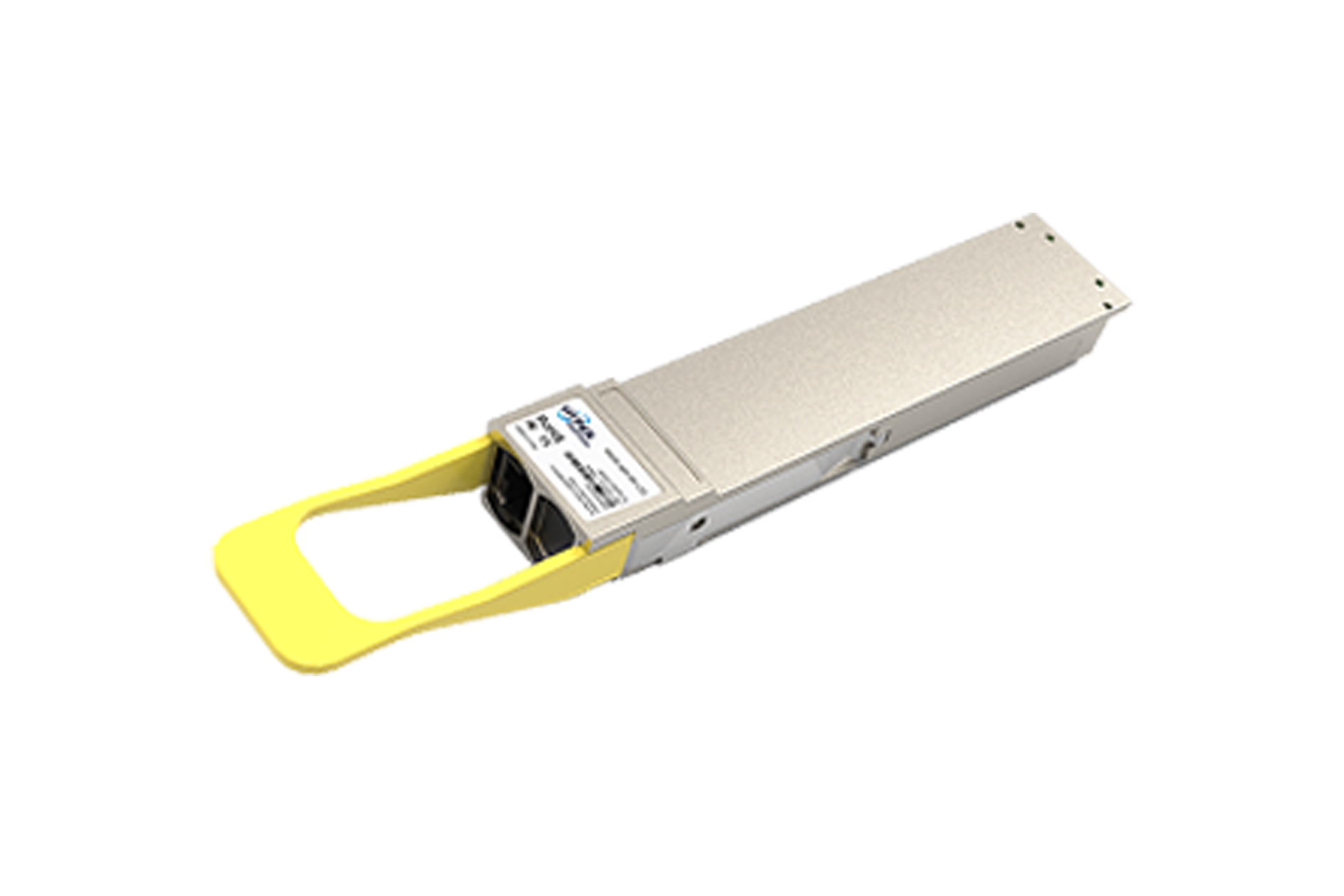

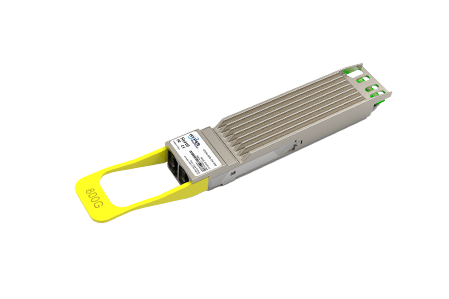

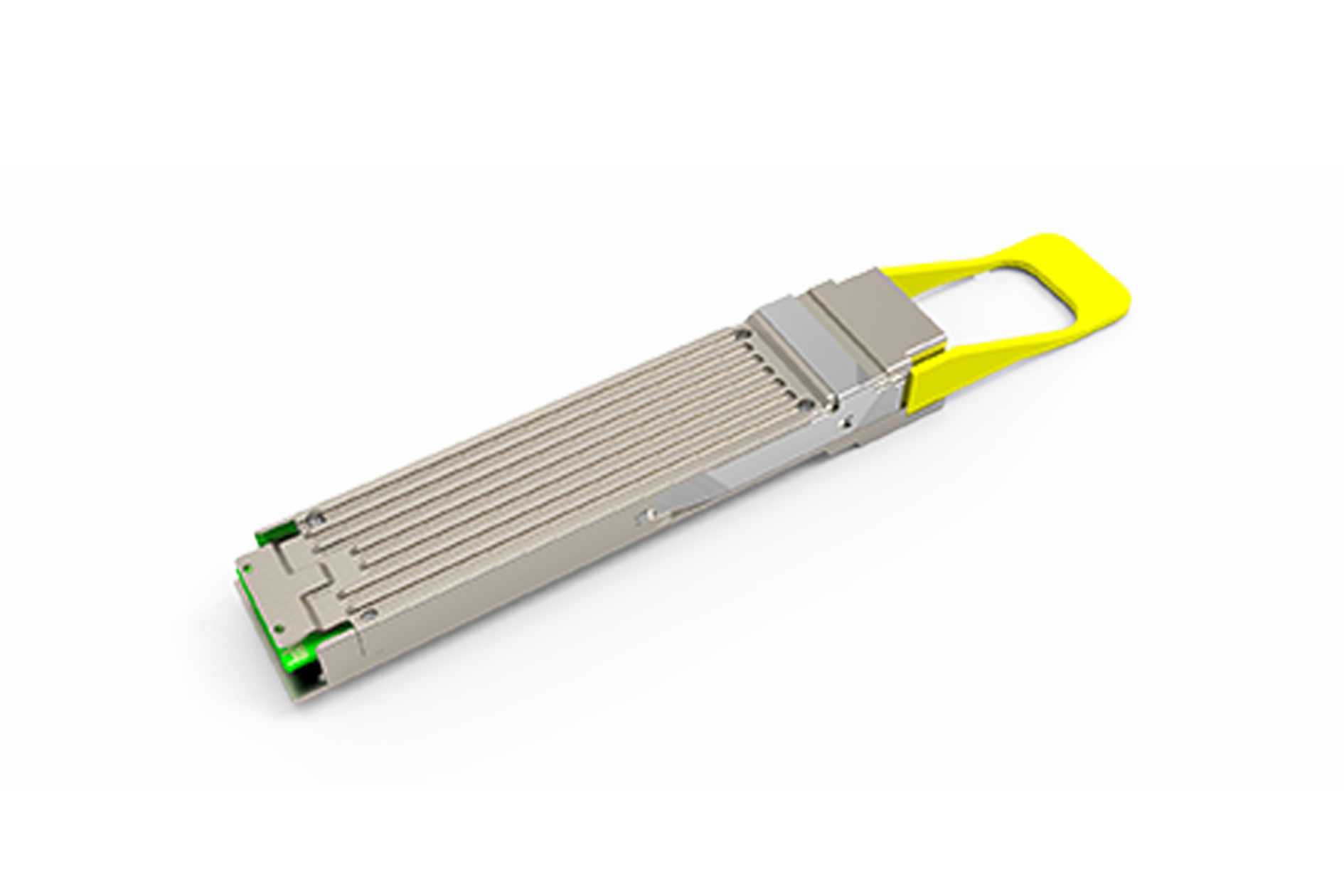

800G OSFP DR8+ FLT Pluggable Optical Transceiver

The Hyper Photonix HSO8-800-DRP-P8S transceiver is designed for 800G Ethernet and InfiniBand communication application links over 2km of single-mode fiber(SMF), and it is compliant with OSFP MSA, 800G Pluggable MSA, CMIS 5.1, IEEE802.3ck and IEEE 802.3df standards. The optical signal is transmitted over eight parallel channels at a central wavelength of 1310nm. The module contains 8 parallel channels on the transmitter and receiver, each operating at 106.25Gbps. It is suitable for 800G Ethernet, Data Center, InfiniBand, Breakout 2x400G DR4 or 8x100G DR1 Application. The optical interface is 2*MPO-12/APC connector.

TAG: 800G, Optical Transceiver, Data Center
Get a Quote
Download
Features
Typical Application
Specifications
Videos

Features

  • OSFP MSA 5.0 and CMIS 5.1 compliant

  • Two MPO-12/APC optical connectors

  • 8x106.25Gbps (53.125GBd PAM4) electrical interface

  • 8x106.25Gbps (53.125GBd PAM4) optical interface

  • Up to 2km over SMF

  • Power dissipation ≤ 18W

  • Operating case temperature: 0°C to 70°C

  • IEEE802.3ck and IEEE 802.3df compliant

  • Built-in digital diagnostic functions

  • 3.3V power supply voltage

  • RoHS compliant

Typical Application

  • 800G Ethernet

  • Datacenter networks

  • InfiniBand NDR

Specifications

Data Rate

800Gbps
Supply voltage3.3V
Power consumption≤ 18W
Wavelength1310nm
Optical connectorTwo MPO-12/APC
TransmitterHyper Silicon™ Photonics
Case Temperature0°C to 70°C
Reach2km over SMF
