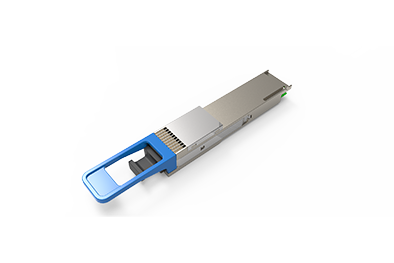

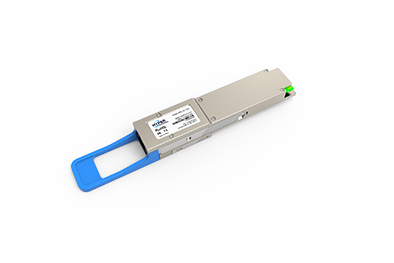

400G QSFP112 DR4 LPO 硅光模块

芯速联 HSQ4-400-LP-C2S 收发器专为 500 米单模光纤 (SMF) 上的 400G 以太网和 InfiniBand 通信应用链路而设计，符合 QSFP112 MSA、CMIS 5.1、IEEE 802.3bs 和 802.3ck 标准。HSQ4-400-LP-C2S 采用 LPO 解决方案。它是一款高性能、低功耗、低延迟、高性价比的模块。该模块在发射器和接收器上包含 4 个并行通道，每个通道的工作速率为 106.25Gbps。光信号以 1310nm 的中心波长通过四个并行通道传输。光接口为 MTP/MPO-12 APC 连接器。

TAG: 400G, Optical Transceiver, Data Center, LPO

Get a Quote

Download

Features

Typical Application

Specifications

Videos

Features

QSFP112 MSA 2.1.1 and CMIS 5.1 compliant
Single MPO-12/APC optical connector
4x106.25Gbps (53.125GBd PAM4) electrical interface
4x106.25Gbps (53.125GBd PAM4) optical interface
Up to 500m over SMF
Power dissipation ≤ 4.5W
Operating case temperature: 0°C to 70°C
IEEE 802.3bs 400GBASE-DR4 compliant
Built-in digital diagnostic functions
3.3V power supply voltage
RoHS compliant

Typical Application

400GBASE-DR4 Ethernet
Data center networks
InfiniBand NDR

Specifications

Part Number	HSQ4-400-LP-C2S
Data Rate	425Gbps
Supply Voltage	3.3V
Power Consumption	≤ 4.5W
Wavelength	1310nm
Case Temperature	0°C to 70°C
Reach	500m
