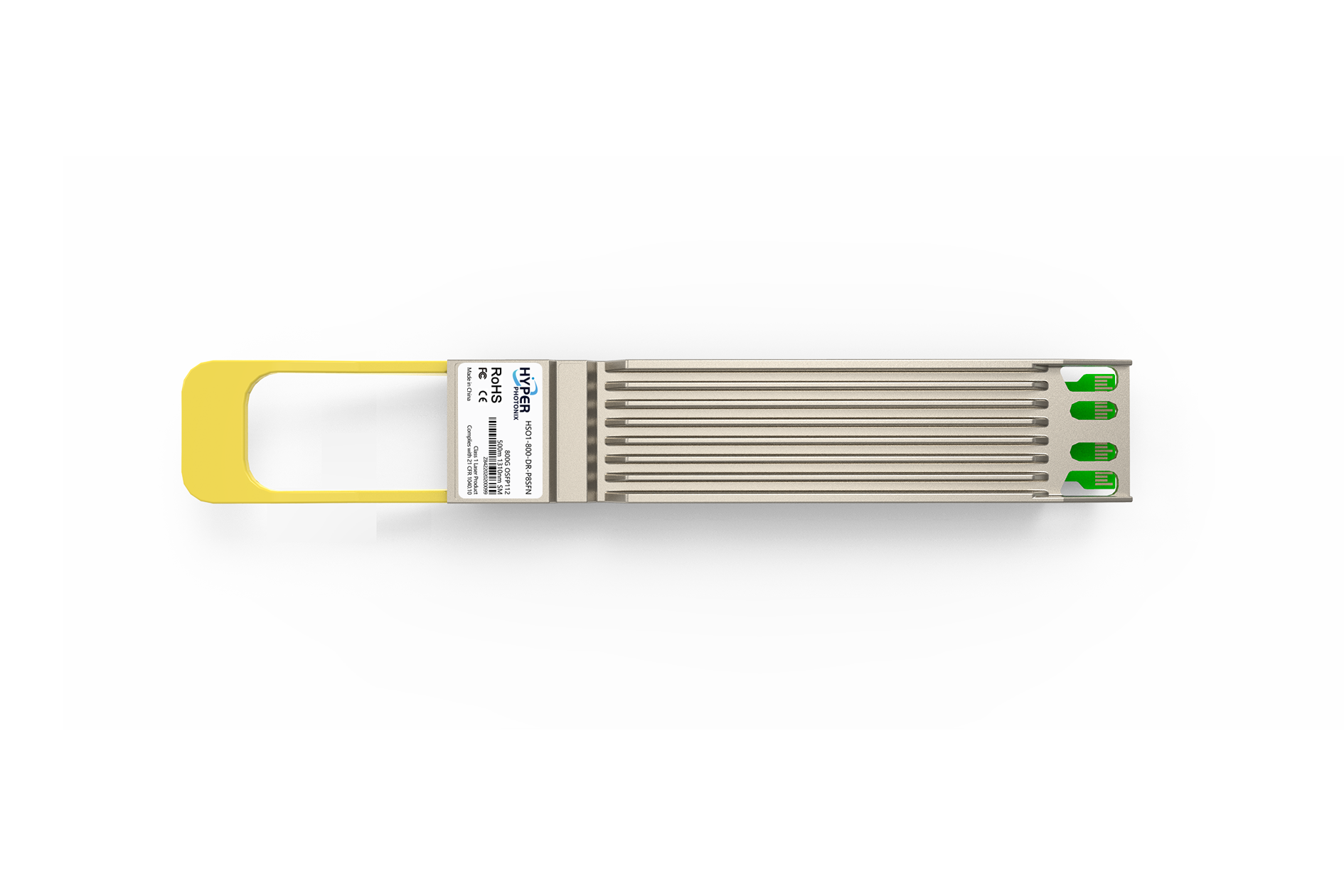

800GBASE-DR8 OSFP Hyper Silicon™ Photonics Pluggable Optical Transceiver

The Hyper Photonix 800GBASE-DR8 OSFP optical transceiver is built on our patented Hyper Silicon™ Photonics platform and designed for 800Gbps data links up to 500m over SMF. It is compliant with OSFP MSA, 800G Pluggable MSA, CMIS 5.1, IEEE802.3ck, and IEEE 802.3df standards. The module has 8 parallel transmitter and receiver lanes operating at 1310nm and 106.25Gbps per lane. It is suitable for 800G Ethernet and InfiniBand ecosystems in 2x400G breakout and 8x100G applications.

TAG: 800G, Optical Transceiver, Data Center
Get a Quote
Download
Features
Typical Application
Specifications
Videos

Features

  • OSFP MSA 5.0 and CMIS 5.1 compliant

  • Dual MPO-12/APC optical connectors

  • 8x106.25Gbps (53.125GBd PAM4) electrical interface

  • 8x106.25Gbps (53.125GBd PAM4) optical interface

  • Up to 500m over SMF

  • Power dissipation ≤ 16W

  • Operating case temperature: 0°C to 70°C

  • IEEE802.3ck and IEEE 802.3df compliant

  • Built-in digital diagnostic functions

  • 3.3V power supply voltage

  • RoHS compliant

Typical Application

  • 800G Ethernet

  • InfiniBand NDR

  • Data Center Networks

Specifications

Part NumberHSO1-800-DR-P8SFN
Data Rate:800Gbps
Supply voltage3.3V
Power consumption≤ 16W
Wavelength1310nm
Optical connector Dual MPO-12/APC
TransmitterHyper Silicon™ Photonics
Case Temperature0℃ to 70℃ (32 to 158°F)
Reach500m over SMF


Videos

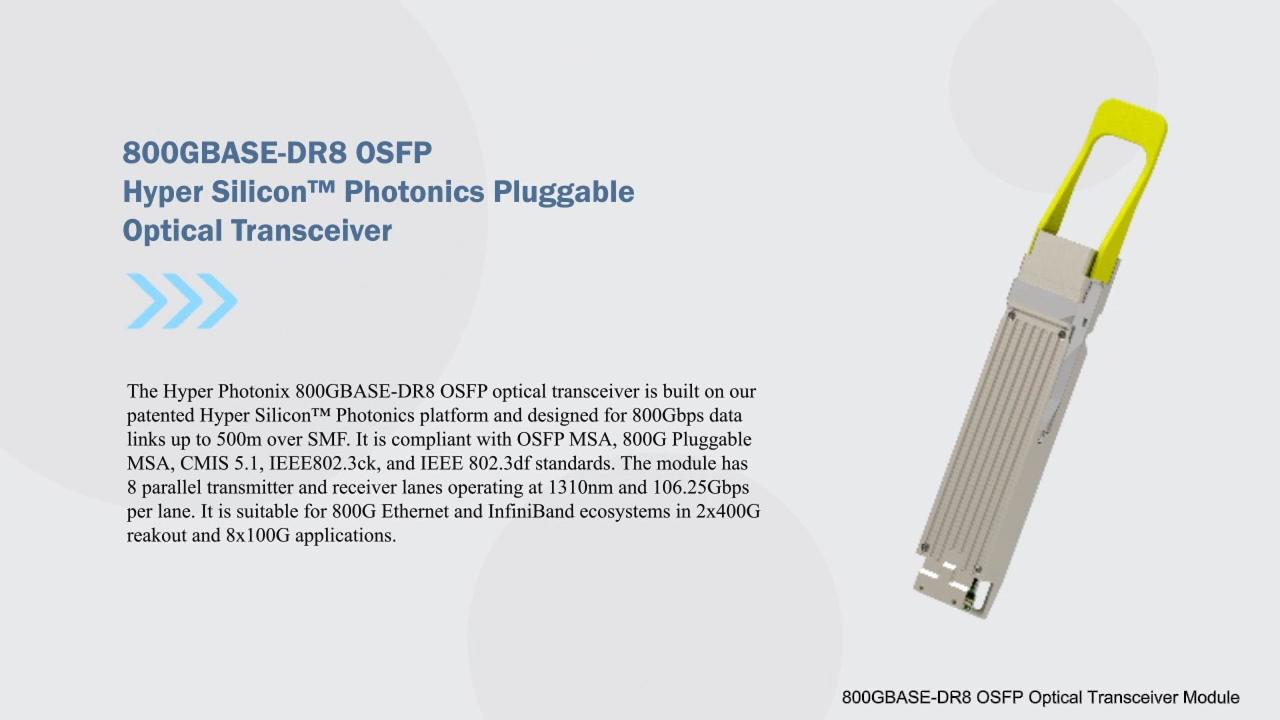

800GBASE-DR8 OSFP Hyper Silicon™ Photonics Pluggable Optical Transceiver
