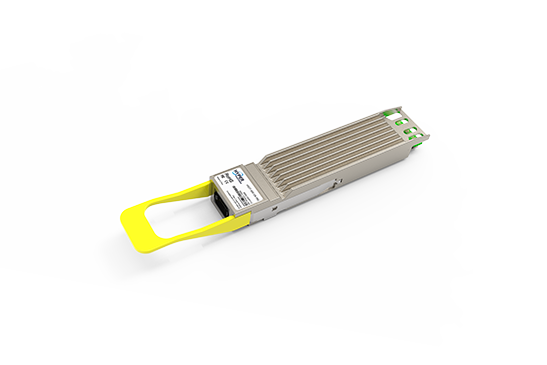

800G OSFP DR8 LPO FNT MPO16 Pluggable Optical Transceiver

The Hyper Photonix HSO7-800-LP-P8S transceiver is designed for 800G Ethernet communication application links over 500m of single-mode fiber (SMF), and it is compliant with OSFP MSA, LPO MSA, CMIS 5.1, IEEE 802.3ck, and 802.3df standards. The HSO7-800-LP-P8S uses LPO solution. It is a high-performance, low-power, low-latency and cost-effective module. The module contains 8 parallel channels on the transmitter and receiver, each operating at 106.25Gbps. The optical signal is transmitted over eight parallel channels at a central wavelength of 1310nm. The optical interface is MTP/MPO-16 APC connector.
