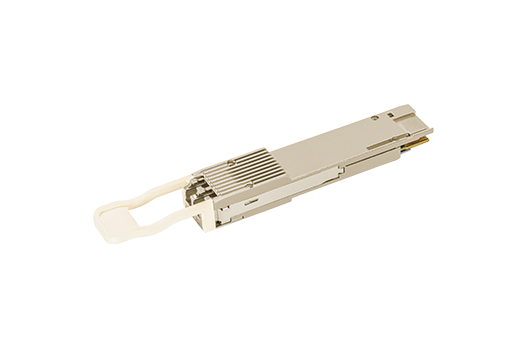

400GBASE ZR+ HO QSFP-DD DWDM LC SMF SiPh Optical Transceiver Module

The Hyper Photonix 400G QSFP-DD ZR+ HO (High Output) transceiver is a high performance, high output power, cost effective module for optical data communication applications from 100G to 400G. The 400G QSFP-DD ZR+ HO is designed for 100G/200G long haul and 300G/400G Metro IP over DWDM applications without inline chromatic dispersion compensation.

The 400G QSFP-DD ZR+ HO is a C-Band optical frequency tunable coherent optical module, combines 7nm coherent DSP ASIC functionality with best-in-class ultra-narrow line-width tunable lasers, high speed silicon photonics coherent modulators and high responsivity coherent receivers to deliver high performance at 100G DP-QPSK, 200G DP-QPSK, 300G DP-8QAM, and 400G DP-16QAM modulation formats. With integrated EDFA and VOA the TX output optical power is adjustable from -10dBm to +1dBm over the C-band.

The 400G QSFP-DD ZR+ HO coherent transceiver is compliant with the OIF 400ZR and OpenZR+ standards. Digital diagnostic functions are available via I2C interface as specified by the QSFP-DD MSA. Mechanical dimensions, connectors, and footprint conform to QSFP-DD MSA.

TAG: 400G,Optical Transceiver,Coherent
获取报价
下载
特征
典型应用
规格
视频

特征

  • Compliant with QSFP-DD MSA, Type 2B package

  • Compliant with OpenZR+ MSA and OIF 400ZR MSA supporting OFEC and CFEC

  • Line rates supported: 100G/200G/300G/400G user selectable

  • Client rates supported: 1/2/3/4x100GbE or 1x400GbE

  • C-band tunable wavelength, supports 100/75/50GHz grid spacing and 0.1GHz fine tuning

  • Integrated EDFA, max TX power +1dBm over C-band

  • Integrated TX VOA, adjustable output power -10 to +1dBm

  • Supports configurable ingress LF hold-off time

  • Supports hitless firmware upgrade

  • Duplex LC connector

  • Operating case temperature: 0°C to 70°C

  • Single 3.3 V power supply

  • Maximum power consumption 22.5W (at 400GbE)

  • RoHS 2 compliant

典型应用

  • Edge DCI with extended reach or with OLP protection

  • IP Over Metro or Long Haul DWDM links to > 450km

规格

Compliance

  • Open ZR+ MSA 2.0 and OIF-400ZR-02.0

  • OIF-CMIS-05.2

  • IA OIF-C-CMIS-01.2

  • QSFP-DD-Hardware-Rev6.3

  • IEEE Std 802.3-2018
