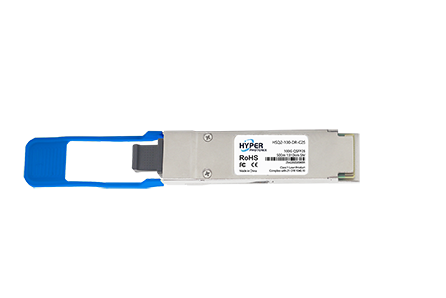

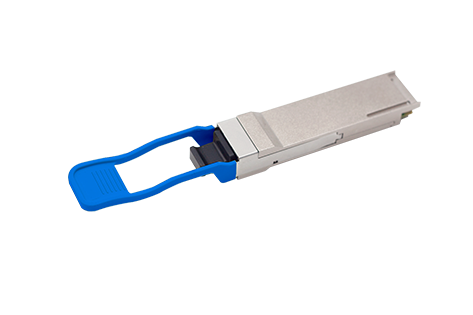

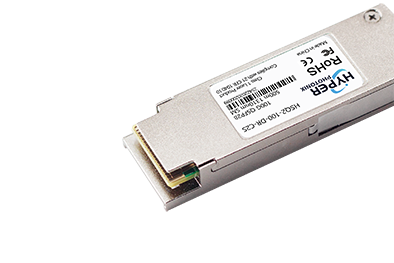

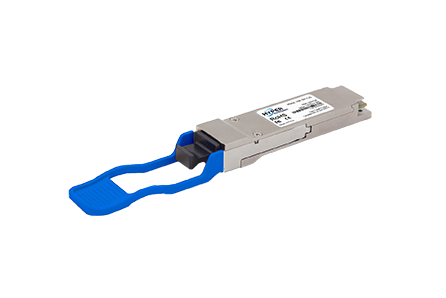

100GBASE-DR1 QSFP28 1310nm 500m DOM LC SMF Optical Transceiver Module
The 100Gbase DR incorporates one channel optical signal, on 1310nm center wavelength, operating at a 50Gbaud data rate. A DSP-based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signals. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and the optical interface is compliant with IEEE 802.3cd and 100G Lambda MSA with a Duplex LC connector. The module has a maximum power consumption of 3.5W.
TAG:
100G,Optical Transceiver,Data Center
