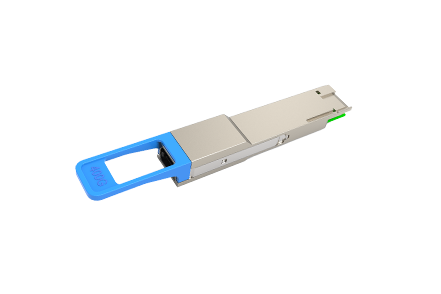

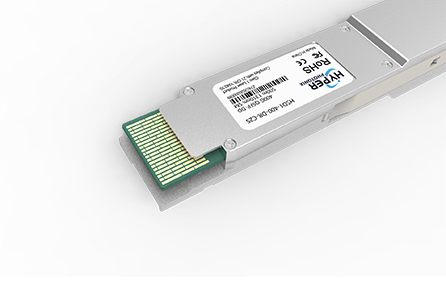

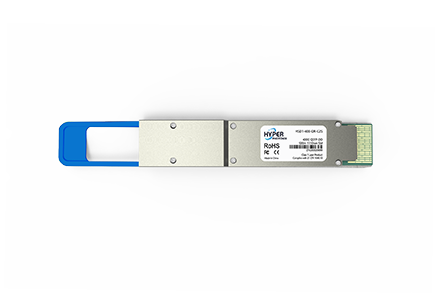

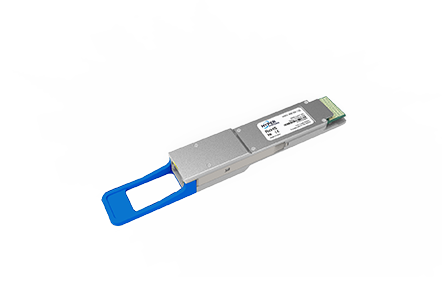

400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM MTP/MPO SMF SiPh Optical Transceiver Module

The Hyper Photonix HSD1-400-DR-C2S transceiver is designed for 500m optical communication applications, and it is compliant with QSFP-DD MSA, CMIS 4.0, IEEE 802.3bs, and 400GAUI-8 standards. The 425 Gigabit signal is carried over four parallel lanes at 1310nm. The module’s transmitter converts 8-channel 53.125 Gbps electrical data to 4 parallel optical output signals, each supporting 106.25 Gbps. The receiver converts 4-channel 106.25 Gbps optical input data to 8-channel electrical output data.

TAG: 400G, Optical Transceiver, Data Center
获取报价
下载
特征
典型应用
规格
视频

特征

  • QSFP-DD MSA 5.1 and CMIS 4.0 compliant
  • MPO-12 APC connector
  • 8x53.125Gbps PAM4 400GAUI-8 host interface
  • 4x106.25Gbps (53.125GBd PAM4) optical signal
  • Up to 500m over SMF with KP-FEC
  • Power dissipation ≤ 10W
  • Operating case temperature: 0°C to 70°C
  • IEEE 802.3bs 400GBASE-DR4 compliant
  • Built-in digital diagnostic functions
  • 3.3V power supply voltage
  • RoHS compliant

典型应用

  • 400GBASE-DR4 Ethernet

  • Data center networks

规格

Data Rate:425Gb/s
Supply voltage3.3V
Power consumption≤10W
Wavelength1310nm (silicon photonics)
ConnectorMPO-12
TransmitterDFB
ReceiverPIN
Case Temperature0℃ to 70℃ (32 to 158°F)
Reach500m on SMF
