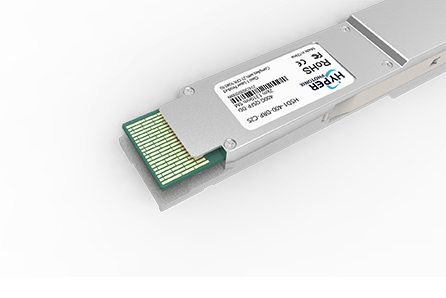

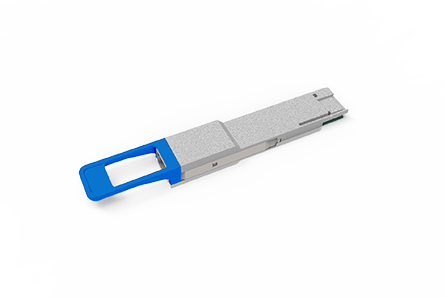

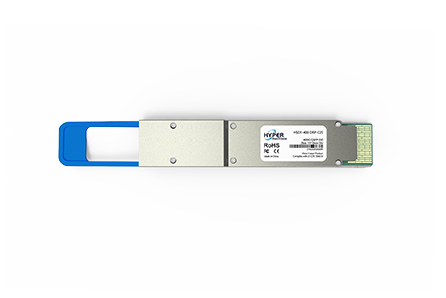

400GBASE-DR4+ QSFP-DD PAM4 1310nm 2km DOM MTP/MPO SMF SiPh Optical Transceiver Module

400G QSFP-DD DR4+ transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP-DD MSA, IEEE 802.3bs and 100G Lambda MSA.The optical transceiver is RoHS compliant.

TAG: 400G, Optical Transceiver, Data Center
获取报价
下载
特征
典型应用
规格
视频

特征

  • QSFP-DD MSA 5.1 and CMIS 4.0 compliant
  • MPO-12 APC connector
  • 8x53.125Gbps PAM4 400GAUI-8 host interface
  • 4x106.25Gbps (53.125GBd PAM4) optical signal
  • Up to 2 km over SMF with KP-FEC
  • Power dissipation ≤ 10W
  • Operating case temperature: 0°C to 70°C
  • IEEE 802.3bs 400GBASE-DR4 compliant
  • Built-in digital diagnostic functions
  • 3.3V power supply voltage
  • RoHS compliant

典型应用

  • 400GBASE-DR4 Ethernet

  • Data center networks

规格

Data Rate:425Gbps
Supply voltage3.3V
Power consumption≤10W
Wavelength1310nm (silicon photonics)
ConnectorMPO-12
TransmitterDFB
ReceiverPIN
Case Temperature0℃ to 70℃ (32 to 158°F)
Reach2km on SMF
