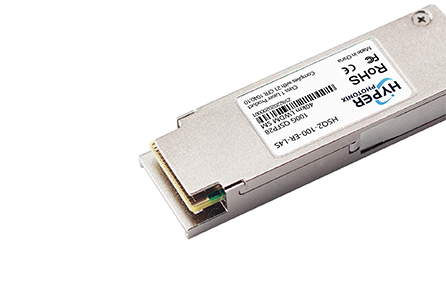

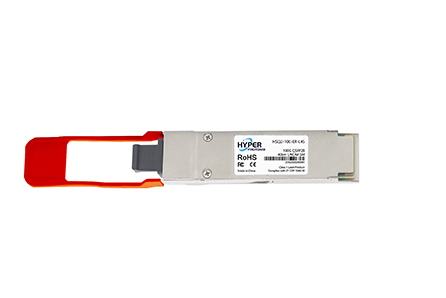

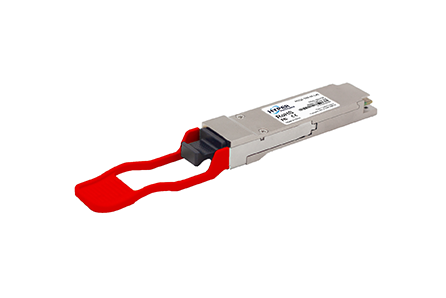

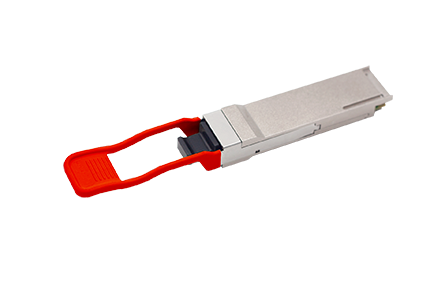

芯速联HSQ2-100-ER-L4S 收发器采用双工 LC 接头设计，单模光纤（OS2）链路最长可达 40 公里，符合 IEEE 802.3ba 100GBASE-ER4 Lite、QSFP28 MSA Compliant 标准。此外，100G 光纤收发器还支持 DDM（数字诊断监控）功能，可实现实时运行参数监控。凭借这些功能，这款 100G QSFP28 收发器可广泛应用于 100G 电信连接、DCI、城域网和高性能计算网络。
Compliant to Ethernet 100GBASE-ER4
Supports 103.1Gb/s aggregate bit rate
Transmitter: cooled 4x25Gb/s LAN WDM TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s APD ROSA
Up to 40km reach for G.652 SMF
Duplex LC optical receptacle
4x25G electrical interface (OIF CEI-28G-VSR)
RoHS-10 compliant and lead-free
Single +3.3V power supply
Maximum power consumption 4.5W
Case operating temperature
Commercial: 0 ~ +70oC
100GBASE-ER4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 100G Telecom connections
| Data Rate: | 100G (4x25Gb/s) |
| Supply voltage | 3.3V |
| Power consumption | ＜4.5W |
| Wavelength | 1310nm BandTx 1310nm/Rx 1310nm |
| Connector | LC |
| Transmitter | 4x LWDM EML |
| Receiver | PIN |
| Case Temperature | 0℃ to 70℃ (32 to 158°F) |
| Reach | 40km |
