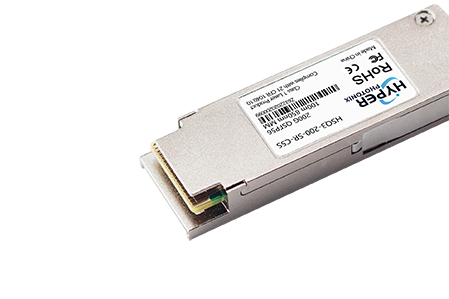

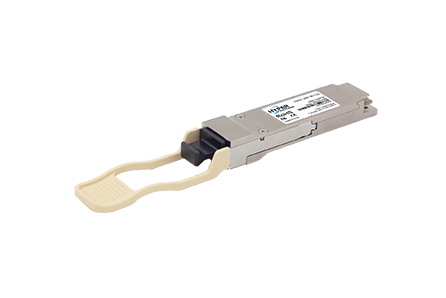

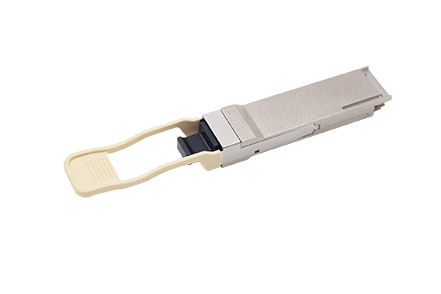

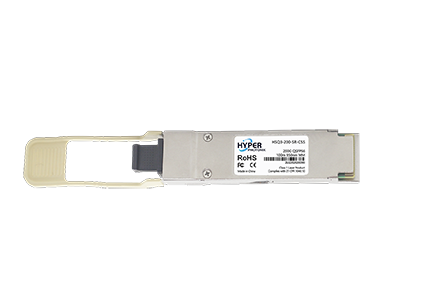

200GBASE-SR4 QSFP56 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module

The Hyper Photonix HSQ3-200-SR-C5S is a 200G QSFP56 SR4 pluggable transceiver. Each channel operates with PAM4 modulation scheme at 26.5625G baud rate, and up to 100m on OM4 MMF with KP4 FEC.

TAG: 200G,Optical Transceiver,Data Center
获取报价
下载
特征
典型应用
规格
视频

特征

Support 212.5Gbps data rate
Compliant to CMIS V4.0
100m link length of 100m on OM4 MMF with KP4 FEC
+3.3V single power supply
Less than 6w power consumption
Operating case temp Commercial: 0°C to +70 °C
RoHS compliant

典型应用

200GBASE-SR4 Ethernet

Other 200G optical links

规格

Data Rate:212.5G
Supply voltage3.3V
Power consumption＜6W
Wavelength850nm
ConnectorMPO-12
Case Temperature0℃ to 70℃ (32 to 158°F)
Reach100m on OM4
