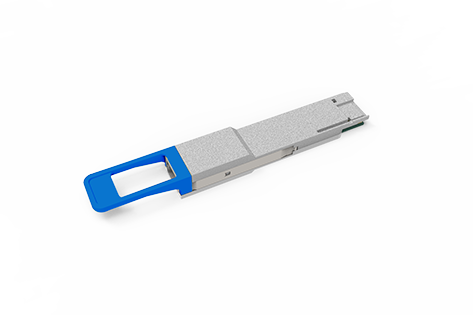

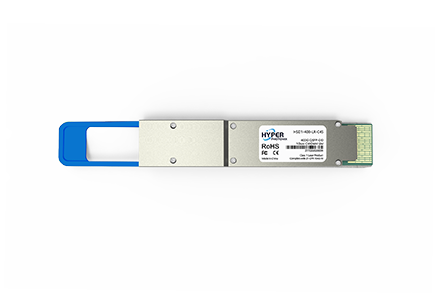

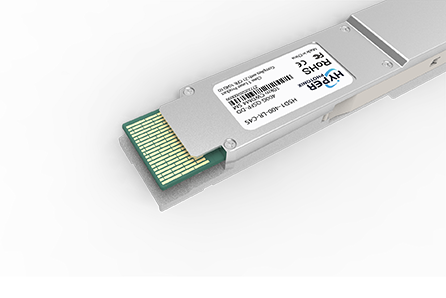

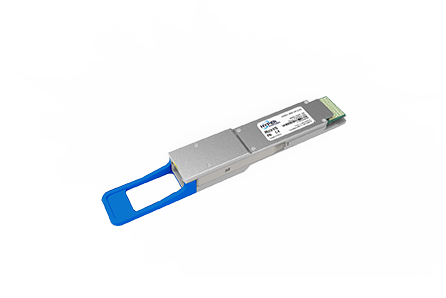

400GBASE-LR4 QSFP-DD PAM4 1310nm 10km DOM LC SMF Optical Transceiver Module

The Hyper Photonix HSD1-400-LR-C4S is a high performance, cost effective module for optical data communication applications to 400G and transmission distance up to 10km on SM fiber. The transceiver consists of two sections: The transmitter section incorporates a quad channel EML Laser, a quad channel driver and a DSP. The receiver section consists of a quad channel PIN photodiode integrated with a quad channel transimpedance preamplifier (TIA) and sharing DSP with transmitter. The module is hot pluggable with a 76-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module.

TAG: 400G, Optical Transceiver, Data Center
获取报价
下载
特征
典型应用
规格
视频

特征

  • Up to 10KM transmission distance
  • Signaling rate per lane, 53.125GBd
  • EML with TEC and PIN receiver
  • Modulation format ,PAM4
  • 400GAUI-8 electrical interface
  • 2-wire interface for integrated Digital Diagnostic monitoring
  • QSFP-DD MSA package with single LC connectors
  • Hot pluggable
  • Very low EMI and excellent ESD protection
  • +3.3V power supply
  • Power consumption less than 12W
  • Operating case temperature: 0~70℃

Compliance
  • Compliant with IEEE 802.3 cu-2021

  • Compliant with IEEE802.3 bs-2017

  • Compliant with QSFP-DD-Hardware-rev5.1
  • Compliant with QSFP-DD-CMIS-rev4p0
  • Compliant with ROHS

典型应用

400G LR4 applications

规格

Data Rate:400Gb/s
Supply voltage3.3V
Power consumption≤12W
Wavelength1310nm CWDM
ConnectorLC
Transmitter4x CWDM EML Laser
ReceiverPIN
Case Temperature0℃ to 70℃ (32 to 158°F)
Reach10km
