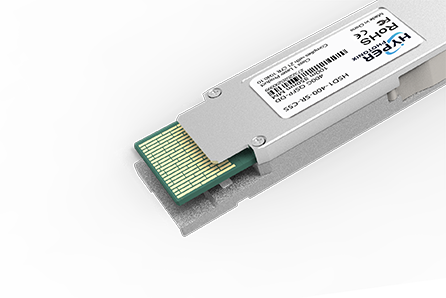

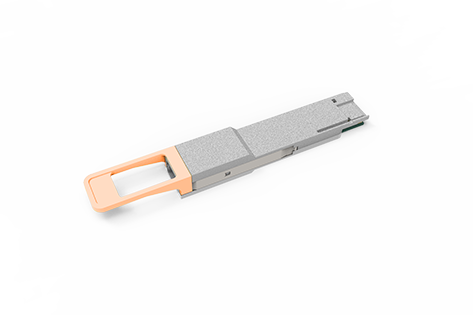

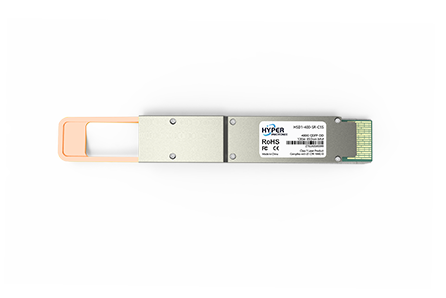

400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module

The Hyper Photonix HSD1-400-SR-C5S transceiver supports multimode fiber (MMF) link lengths of up to 100m via MTP/MPO-16 connectors. It supports eight electrical interface channels that operate in 50G PAM4 coding mode to produce 400G (8x50G) data rates. It is compliant with the IEEE 802.3bs protocol and the 400GAUI- 8/CEI-56G-VSR-PAM4 standard. The multiplexing and demultiplexing of eight wavelengths are managed within the device and connect 400G signals from the server side (NIC) to the data center aggregation switch.

TAG: 400G, Optical Transceiver, Data Center
获取报价
下载
特征
典型应用
规格
视频

特征

QSFP-DD MSA compliant
QSFP-DD CMIS4.0 management interface compliant
IEEE 802.3cm 400GBASE-SR8 standard compliant
IEEE 802.3bs 400GAUI-8 standard compliant
Digital diagnostic functions
8-channel full-duplex transceiver module
425 Gbit/s aggregate bit rate
Maximum link length of 70 m OM3, 100 m OM4 with FEC
Single MPO-16/APC receptacle
Maximum power dissipation < 10 W
Operating case temperature range 0 to 70℃
Single 3.3 V power supply
RoHS 2 compliant

典型应用

  • 400G Ethernet

  • Data Center networks

规格

Data Rate400G
Supply voltage3.3V
Power consumption<10W
Temp0°C – 70°C
Reach70m OM3, 100m OM4 with FEC
